Aluminum Laminated Films Forming Machine Battery Making Machine for Lithium Battery Production Line

Product Description

Product Description

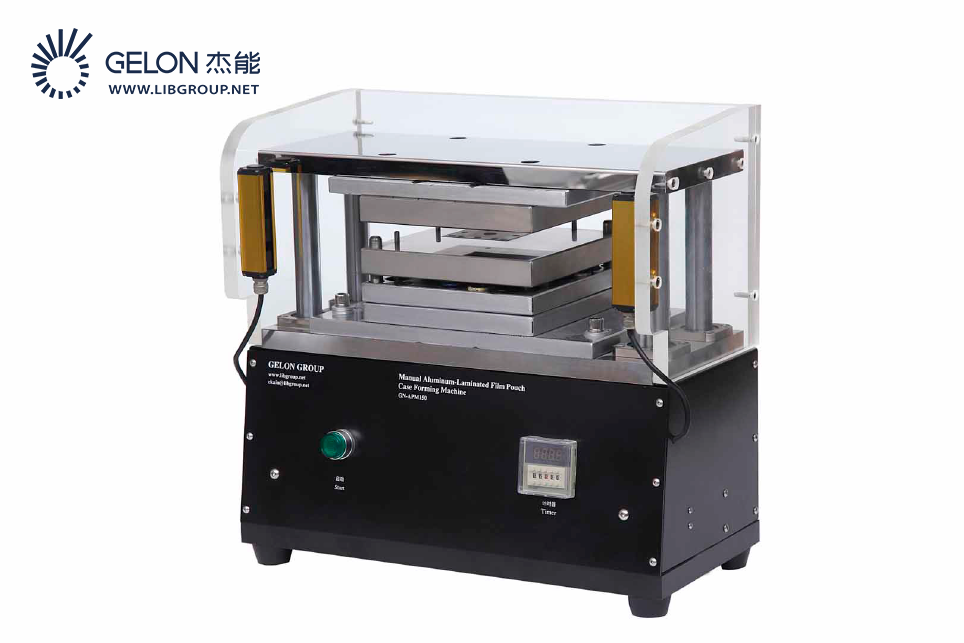

Aluminum Laminated Films Forming Machine Battery Making Machine for Lithium Battery Production Line

 1. Aluminum-plastic film forming machine is a kind of equipment applied in forming aluminum-plastic film of lithium ion soft packbattery. The device is driven by a cylinder, and the upper and lower molding die can be made according to the customer's requirements to achieve the different sizes of the lithium ion battery aluminum plastic film shell molding. Sheet type aluminum-plastic film forming, suitable for research and development and sample making applications;
2. Cylinder drive, no electricity, molding pressure and molding speed adjustable; High strength frame, up and down precision template, ensure the accuracy of forming; The molding product is evenly drawn, with high quality drawing effect and no defects such as strain and fracture. Standard with a set of standard size mold, can also be made according to customer requirements.
                                          SPECIFICATION FOR POUCH CASE/CUP FORMING MACHINE
Maximum feed size
L150mm × W60mm
Max Punching depth
6mm
Power
 single-phase 220V
Frequency
50Hz / 60Hz
Power
100w
Compressed air source
0.5-0.8MPa
Outer Size
L445mm × W225mm × H420mm
Detailed Images
Related Products
We can also supply:
1.)full set of lithium battery materials,including :
LiFePO4,LiMn2O4,LTO,LiNiMnCoO2(NMC),LiCoO2,Graphite(MCMB)and Other cathode&anode battery materials;Alumimun foil,copper foils,Battery Separator,etc.

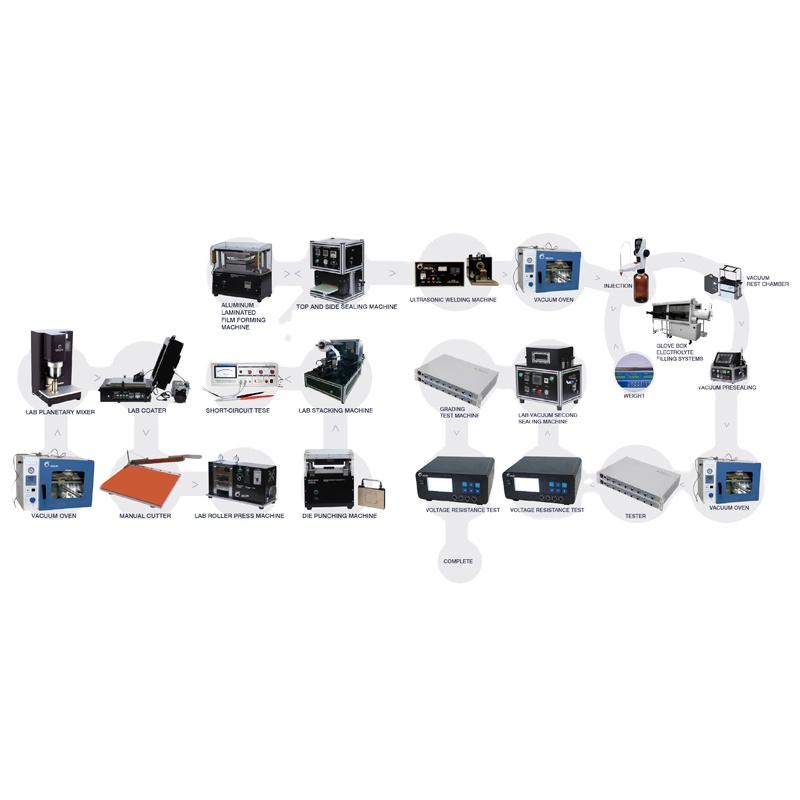

2.)full set of lithium battery equipments,for example:
Mixing machine --coating machine--oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.
3.)full set of lithium battery technology:
We can design the laboratory and production line,according to customer's request.
Company Introduction
FAQ
FAQ
Q 1: How to place an order ?

A :Please send us your purchase order by email or call us sales , then we can make the proforma invoice under your request .We need to know the following information for your order before sending your PI 1) Product information--quantity,specification(size,technological if needed and packing requirements ect.) 2) Delivery time required. 3) Shipping information--Company name, detail address, phone number, destination sea port . 4) Forwarder’s contact details if there’s any in China

Q2 : I want to buy this machine, what suggestion can you give ?
A : Please tell us : What’s your application and your special request of the products ? Better to let us know what’s your expect performance ?

Q3 :How is your delivery time ?
A : Usually it takes 7-20 days after your deposit , if it’s standard model that we have in stock . Other situations please consult with us in advance.

Q4 :This is the first time i use this kind of machine ,is it easy to operate ?
A : There is a English manual for each equipment that will show you how to use the machine .If there is still any questions,Please feel free to contact us by online service, such as e-mail/skype/phone/whatsapp/Wechat at any time.

Q5 :What is warranty time of machine and accessories ?
A : The guarantee period : One year

Contact us if you need more details on Aluminum Laminated Film Forming Machine For Pouch Cell Case. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Aluminum Laminated Film Forming Machine Battery Making Machine、Pouch Cell Case/cup Forming Machine For Aluminum-laminated Films. If these products fail to match your need, please contact us and we would like to provide relevant information.
